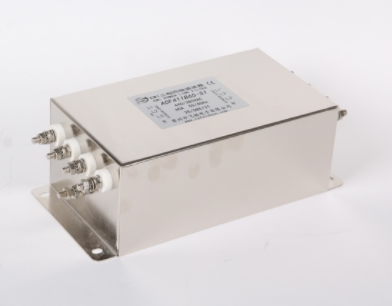

Three Phase Four Line General Purpose EMI Filter

Product Introduction

Feature & Application:

Ø  Low leakage current, small size

Ø  Three-phase with neutral line

Ø  Widely used in machine tool device, inverter power supply, inverter equipment, industrial equipment, medical appliance and so on


Technical Data:

Rated voltage

250/440VAC

Rated current

1A250A

Operating frequency

50/60Hz

Temperature Range

HPF25/085/21

Test voltage(1min)

Line to Line 2250VDC

Line to Neutral 1760 VDC

Line to Ground  2700VDC


Electrical schematics:




Selection Table:

EMI Filter

Rated Current(A)

Rated Voltage (V)

Leakage Current (mA)

Electrical Schematic

Input/output         Connections

EFN101-6-M

6

440

2.0

Fig.1

Screw

EFN101-10-M

10

440

2.0

Fig.1

Screw

EFN101-20-M

20

440

2.0

Fig.1

Screw

EFN101-30-M

30

440

4.5

Fig.1

Screw

EFN101-40-M

40

440

4.5

Fig.1

Screw

EFN101-50-M

50

440

4.5

Fig.1

Screw

EFN101-80-M

80

440

8.0

Fig.1

Screw

EFN101-100-M

100

440

8.0

Fig.1

Screw

EFN101-150-M

150

440

8.0

Fig.1

Screw

EFN101-200-M

200

440

20.0

Fig.1

Screw
