Product Introduction
Feature & Application:
Ø Low leakage current, good performance of suppressing common mode and differential mode interference
Ø Three-phase with neutral line
Ø Widely used in machine tool device, inverter power supply, inverter equipment, industrial equipment, medical appliance and so on
Technical Data:
|
Rated voltage |
250/440VAC |
|
Rated current |
1A～400A |
|
Operating frequency |
50/60Hz |
|
Temperature Range |
HPF25/085/21 |
|
Test voltage(1min) |
Line to Line 2250VDC |
|
Line to Neutral 1760 VDC |
|
|
Line to Ground 2700VDC |

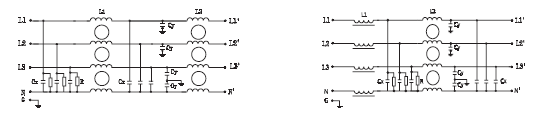

Electrical schematics:
Selection Table:
|
EMI Filter |
Rated Current(A) |
Rated Voltage (V) |
Leakage Current (mA) |
Electrical Schematic |
Input/output Connections |
|
EFN201-10-M |
10 |
440 |
2.0 |
Fig.1 |
Screw |
|
EFN201-20-M |
20 |
440 |
2.0 |
Fig.1 |
Screw |
|
EFN201-50-M |
50 |
440 |
4.0 |
Fig.1 |
Screw |
|
EFN201-100-M |
100 |
440 |
8.0 |
Fig.1 |
Screw |
|
EFN201-150-M |
150 |
440 |
12.0 |
Fig.1 |
Screw |
|
EFN201-200-M |
200 |
440 |
12.0 |
Fig.1 |
Screw |
|
EFN200-6-M |
6 |
440 |
2.0 |
Fig.2 |
Screw |
|
EFN200-10-M |
10 |
440 |
2.0 |
Fig.2 |
Screw |
|
EFN200-20-M |
20 |
440 |
4.0 |
Fig.2 |
Screw |
|
EFN200-50-M |
50 |
440 |
4.0 |
Fig.2 |
Screw |
