Product Introduction
Feature & Application:
Ø High security and reliability, high performance filters
Ø Excellent performance of suppressing common mode and differential mode interference
Ø Highly cost-effective, various connection ways
Ø Suitable for switching power supply, UPS, ATM, bill counter, embroidery machine, fuel dispenser, engraving machine, controller, industrial computer, scientific analytical
Ø instruments and other power electronic equipments as well as inverter equipments
Technical Data:
|
Rated voltage |
110/250VAC |
|
Rated current |
1A～250A |
|
Operating frequency |
50/60Hz |
|
Temperature Range |
HPF25/085/21 |
|
Test voltage(1min) |
Line to Line 1760VDC |
|
Line to Ground 2000VAC |

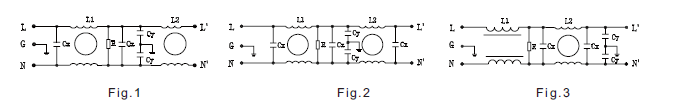

Electrical schematics:
Selection Table:
|
EMI Filter |
Rated Current(A) |
Rated Voltage (V) |
Leakage Current (mA) |
Electrical Schematic |
Input/output Connections |
|
EFA201-1-W |
1 |
110/250 |
0.5 |
Fig.1 |
Wire |
|
EFA201-3-W |
3 |
110/250 |
0.5 |
Fig.1 |
Wire |
|
EFA201-6-W |
6 |
110/250 |
0.5 |
Fig.1 |
Wire |
|
EFA201-10-F |
10 |
110/250 |
1.0 |
Fig.1 |
Faston |
|
EFA202-6-F |
6 |
110/250 |
1.0 |
Fig.2 |
Faston |
|
EFA202-10-F |
10 |
110/250 |
1.0 |
Fig.2 |
Faston |
|
EFA202-20-F |
20 |
110/250 |
1.0 |
Fig.2 |
Faston |
|
EFA202-6-M |
6 |
110/250 |
1.0 |
Fig.2 |
Screw |
|
EFA202-10-M |
10 |
110/250 |
1.0 |
Fig.2 |
Screw |
|
EFA202-20-M |
20 |
110/250 |
1.0 |
Fig.2 |
Screw |
|
EFA202-50-M |
30 |
110/250 |
2.0 |
Fig.2 |
Screw |
|
EFA202-100-M |
50 |
110/250 |
2.0 |
Fig.2 |
Screw |
|
EFA202-200-M |
100 |
110/250 |
2.0 |
Fig.2 |
Screw |
|
EFA200-1-W |
150 |
110/250 |
0.5 |
Fig.3 |
Wire |
|
EFA200-3-W |
200 |
110/250 |
0.5 |
Fig.3 |
Wire |
|
EFA200-6-F |
6 |
110/250 |
1.0 |
Fig.3 |
Faston |
|
EFA200-10-F |
10 |
110/250 |
1.0 |
Fig.3 |
Faston |
|
EFA200-6-M |
6 |
110/250 |
1.0 |
Fig.3 |
Screw |
|
EFA200-10-M |
10 |
110/250 |
1.0 |
Fig.3 |
Screw |
|
EFA200-20-M |
20 |
110/250 |
1.0 |
Fig.3 |
Screw |
|
EFA200-50-M |
50 |
110/250 |
2.0 |
Fig.3 |
Screw |
