Product Introduction
Feature & Application:
Ø Low leakage current, small size
Ø Widely used in many kinds of electronic equipments, such as printer, packing machine, textile equipment, industrial air conditioner, UPS, X-ray, CT and so on
Technical Data:
|
Rated voltage |
250/440VAC |
|
Rated current |
1A～250A |
|
Operating frequency |
50/60Hz |
|
Temperature Range |
HPF25/085/21 |
|
Test voltage(1min) |
Line to Line 2250VDC |
|
Line to Ground 2700VDC |

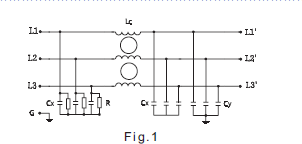

Electrical schematics:
Selection Table:
|
EMI Filter |
Rated Current(A) |
Rated Voltage (V) |
Leakage Current (mA) |
Electrical Schematic |
Input/output Connections |
|
EFC101-6-M |
6 |
250/440 |
2.0 |
Fig.1 |
Screw |
|
EFC101-10-M |
10 |
250/440 |
2.0 |
Fig.1 |
Screw |
|
EFC101-20-M |
20 |
250/440 |
2.0 |
Fig.1 |
Screw |
|
EFC101-30-M |
30 |
250/440 |
2.0 |
Fig.1 |
Screw |
|
EFC101-40-M |
40 |
250/440 |
2.0 |
Fig.1 |
Screw |
|
EFC101-50-M |
50 |
250/440 |
3.0 |
Fig.1 |
Screw |
|
EFC101-80-M |
80 |
250/440 |
7.0 |
Fig.1 |
Screw |
|
EFC101-100-M |
100 |
250/440 |
7.0 |
Fig.1 |
Screw |
|
EFC101-150-M |
150 |
250/440 |
7.0 |
Fig.1 |
Screw |
|
EFC101-200-M |
200 |
250/440 |
7.0 |
Fig.1 |
Screw |
