Product Introduction
Feature & Application:
Ø Excellent low frequency attenuation effect, good performance of suppressing common mode and differential mode inteference
Ø Terminal block connector, easy to connect the wire, high security and reliability
Ø Suitable for machine tool device, industrial power supply, inverter power supply, inverter equipment and so on
Technical Data:
|
Rated voltage |
250/440VAC |
|
Rated current |
6A～250A |
|
Operating frequency |
50/60Hz |
|
Temperature Range |
HPF25/085/21 |
|
Test voltage(1min) |
Line to Line 2250VDC |
|
Line to Ground 2700VDC |

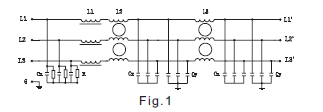

Electrical schematics:
Selection Table:
|
EMI Filter |
Rated Current(A) |
Rated Voltage (V) |
Leakage Current (mA) |
Electrical Schematic |
Input/output Connections |
|
EFC301-6-T |
6 |
250/440 |
7.0 |
Fig.1 |
Terminal block ( with/without cover) |
|
EFC301-10-T |
10 |
250/440 |
7.0 |
Fig.1 |
Terminal block ( with/without cover) |
|
EFC301-25-T |
25 |
250/440 |
7.0 |
Fig.1 |
Terminal block ( with/without cover) |
|
EFC301-30-T |
30 |
250/440 |
7.0 |
Fig.1 |
Terminal block ( with/without cover) |
|
EFC301-60-T |
60 |
250/440 |
7.0 |
Fig.1 |
Terminal block ( with/without cover) |
|
EFC301-80-T |
80 |
250/440 |
7.0 |
Fig.1 |
Terminal block ( with/without cover) |
