Product Introduction
Feature & Application:
Ø Specially designed for suppressing the noise on DC power line
Ø Excellent low and high frequency attenuation effect
Ø Highly cost-effective, various connection ways
Ø Suitable for all kinds of DC electronic equipments, such as switching power supply, PBX and so on
Technical Data:
|
Rated voltage |
24VDC~250VDC |
|
Rated current |
1A～250A |
|
Operating frequency |
DC |
|
Temperature Range |
HPF25/085/21 |

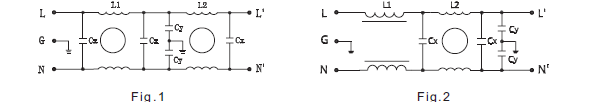

Electrical schematics:
|
EMI Filter |
Rated Current(A) |
Rated Voltage (V) |
Electrical Schematic |
Input/output Connections |
|
EFAD200-1-W |
1 |
24VDC~250VDC |
Fig.1 |
Wire |
|
EFAD200-3-W |
3 |
24VDC~250VDC |
Fig.1 |
Wire |
|
EFAD200-6-F |
6 |
24VDC~250VDC |
Fig.1 |
Faston |
|
EFAD200-10-F |
10 |
24VDC~250VDC |
Fig.1 |
Faston |
|
EFAD202-20-F |
20 |
24VDC~250VDC |
Fig.2 |
Faston |
|
EFAD202-20-M |
20 |
24VDC~250VDC |
Fig.2 |
Screw |
|
EFAD202-30-M |
30 |
24VDC~250VDC |
Fig.2 |
Screw |
|
EFAD202-50-M |
50 |
24VDC~250VDC |
Fig.2 |
Screw |
|
EFAD202-80-M |
80 |
24VDC~250VDC |
Fig.2 |
Screw |
